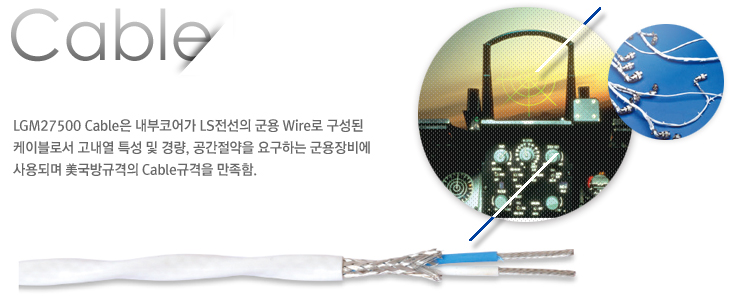

Class of Cable | 온도 ℃ |
Composition Wire |
MIL SPEC | LS P/N | |||||
---|---|---|---|---|---|---|---|---|---|
LS P/N | Conductor AWG |
Type | Number of Cores |
Shield Materal & Style Code |
Jacket Materal & Style Code |
||||
600V Airframe Wire, normal weight |
150 | MIL-W-81044/5 | MIL-C-27500 MD | LGM27500 | 0~24 | MD | 1~10 | U : No shield T : Tin-coated copper, round J : Tin-coated copper, flat S : Silver-coated copper, round G : Silver-coated copper, flat N : Nickel-coated copper, round |
00 : No jacket 08 : Cross linked white PVDF 23 : Cross linked white ETFE 27 : Cross linked Polyethylene |
600V Airframe Wire, normal weight |
150 | MIL-W-81044/6 | MIL-C-27500 ME | LGM27500 | 0~24 | ME | 1~10 | ||
600V Airframe Wire, normal weight |
150 | MIL-W-81044/7 | MIL-C-27500 MF | LGM27500 | 20~26 | MF | 1~10 | ||
600V General purpose, medium weight |
150 | MIL-W-81044/8 | MIL-C-27500 MG | LGM27500 | 0~24 | MG | 1~10 | ||
600V General purpose, medium weight |
150 | MIL-W-81044/9 | MIL-C-27500 MH | LGM27500 | 0~24 | MH | 1~10 | ||
600V General purpose, medium weight |
150 | MIL-W-81044/10 | MIL-C-27500 MJ | LGM27500 | 20~26 | MJ | 1~10 | ||
600V General purpose, medium weight |
150 | MIL-W-81044/11 | MIL-C-27500 MK | LGM27500 | 12~30 | MK | 1~10 | ||
600V General purpose, Light weight |
150 | MIL-W-81044/12 | MIL-C-27500 ML | LGM27500 | 12~30 | ML | 1~10 | ||
600V General purpose, Light weight |
150 | MIL-W-81044/13 | MIL-C-27500 MM | LGM27500 | 20~30 | MM | 1~10 | ||
1000V General purpose, medium weight |
200 | MIL-W-22759/9 | MIL-C-27500 LE | LGM27500 | 8~28 | LE | 1~10 | ||
600V General purpose, medium weight |
200 | MIL-W-22759/11 | MIL-C-27500 RC | LGM27500 | 8~28 | RC | 1~10 | ||
600V General purpose, medium weight |
260 | MIL-W-22759/12 | MIL-C-27500 RE | LGM27500 | 2/0~24 | RE | 1~10 | ||
600V Equipment Wire, light weight |
150 | MIL-W-22759/32 | MIL-C-27500 SB | LGM27500 | 12~30 | SB | 1~10 | ||
600V Equipment Wire, light weight |
200 | MIL-W-22759/33 | MIL-C-27500 SC | LGM27500 | 20~30 | SC | 1~10 | ||
600V Airframe Wire, normal weight |
150 | MIL-W-22759/34 | MIL-C-27500 SD | LGM27500 | 00~24 | SD | 1~10 | ||
600V Airframe Wire, normal weight |
200 | MIL-W-22759/35 | MIL-C-27500 SE | LGM27500 | 20~26 | SE | 1~10 | ||
600V Airframe Wire, normal weight |
200 | MIL-W-22759/41 | MIL-C-27500 SM | LGM27500 | 00~26 | SM | 1~10 | ||
600V Airframe Wire, normal weight |
200 | MIL-W-22759/42 | MIL-C-27500 SN | LGM27500 | 20~26 | SN | 1~10 | ||
600V Airframe Wire, normal weight |
200 | MIL-W-22759/43 | MIL-C-27500 SP | LGM27500 | 00~26 | SP | 1~10 | ||
600V Equipment Wire, light weight |
200 | MIL-W-22759/44 | MIL-C-27500 SR | LGM27500 | 12~28 | SR | 1~10 | ||
600V Equipment Wire, light weight |
200 | MIL-W-22759/45 | MIL-C-27500 SS | LGM27500 | 12~28 | SS | 1~10 | ||
600V Equipment Wire, light weight |
200 | MIL-W-22759/46 | MIL-C-27500 ST | LGM27500 | 20~30 | ST | 1~10 |
