| Coverage (%) |

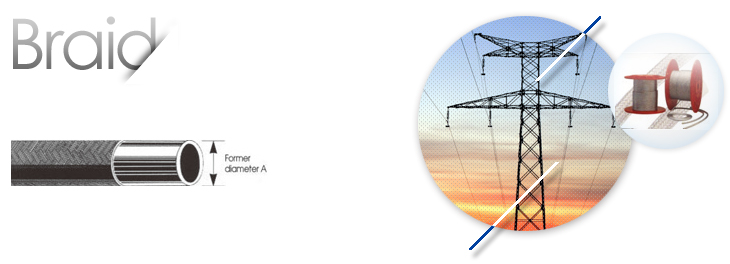

Braid Inside (A) |
No. of Carrier |
End | AWG/MM | Cable bundle tolerance | 참고규격 | |
|---|---|---|---|---|---|---|---|
| Min. | Max. | ||||||
| 93 ↑ | 3.0 ± 0.25 | 24 | 5 | 38 / 0.10 |
2.5 |
5 | Ray-101-3.0 |
| 93 ↑ | 4.0 ± 0.25 | 24 | 9 | 38 / 0.10 | 3.7 | 9 | Ray-101-4.0 |
| 93 ↑ | 6.0 ± 0.25 | 24 | 9 | 36 / 0.13 | 4.6 | 13.5 | Ray-101-6.0 |
| 93 ↑ | 7.5 ± 0.25 | 24 | 14 | 36 / 0.13 | 7.5 | 16 | Ray-101-7.5 |
| 93 ↑ | 10.0 ± 0.25 | 36 | 12 | 36 / 0.13 | 9 | 22.5 | Ray-101-10.0 |
| 93 ↑ | 12.5 ± 0.25 | 36 | 15 | 36 / 0.13 | 11 | 24 | Ray-101-12.5 |
| 93 ↑ | 15.0 ± 0.25 | 24 | 11 | 36 / 0.20 | 14 | 22 | Ray-101-15 |
| 93 ↑ | 20.0 ± 0.25 | 36 | 12 | 36 / 0.20 | 17 | 32 | Ray-101-20.0 |
